Brand :
LinengItem NO :
LN-JK-ZYJ-02Compliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockTel :
+86-13506084915Whatsapp:
+86-13506084915Email:
cassie@lionbatterymachine.comⅠ、Introduction

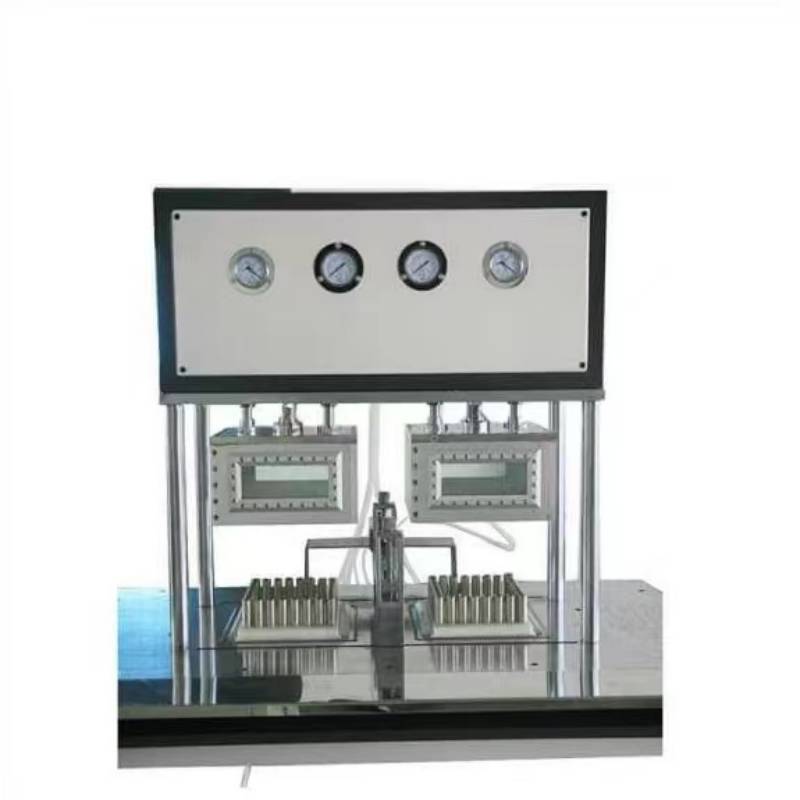

LN-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.
2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.
Ⅱ、Specification
Model | Vacuum Filling Machine LN-JK-ZYJ-02 |
Source voltage | 110V-220V AC, 50/60Hz Single Phase |
Power | 1500W |
Warranty | One year limited and lifetime support |
Suitable battery model | 18650 / 26650 / 32650, For all kinds of cylindrical battery |
Advantages | 1 Customized die for all kinds of cylindrical cell types is available according to request 2 Adopt PLC and man-machine interface centralized control, easy operation. 3 Filling speed and times can be set 4 All the parameters such as vacuum time, air input time, filling quantity and battery distance can be adjusted freely. 5 Vacuum box for static control independently |
Vacuum filling accuracy | ±0.02g |
Vacuum filing time | 1-10times adjustable |
Vacuum filling quantity | 0-7g |
Vacuum degree | -0.1Mpa |
Air supply | 0.3-0.6MPa |
Working clamps | 18650 clamps battery tray 10 rows 8 columns (It can be customized) |
