Battery Thermal Shock Test Chamber

Product Introduction

The Thermal shock box is mainly used for furnace thermal test and heating test in battery safety performance test. The equipment reaches the test temperature within the specified time and maintains it for a certain period of time. The hot air circulation system is adopted to reliably ensure the uniform distribution of working temperature.

Equipment Parameters

1. Inner box size: 500 * 500 * 500mm

2. Temperature range: room temperature+10-200 ℃

3. Display accuracy: 1.0 ℃

4. Temperature control meter: PID intelligent control

5. Inner box material: stainless steel plate

6. Outer box material: cold plate baking paint

7. Thermal insulation material: high-efficiency compressed Glass wool

8. Safety device: Over temperature alarm, overload protection

9. Control formation: Automatically timing when the temperature reaches the set temperature,

10. Cut off the heating power after the time has arrived, and a beep prompt will sound

11. Air supply circulation: Convective air supply circulation system

12. Insulation device: no fuse switch, over temperature protection switch

13. Power supply: 1 phase, 220V, 20A

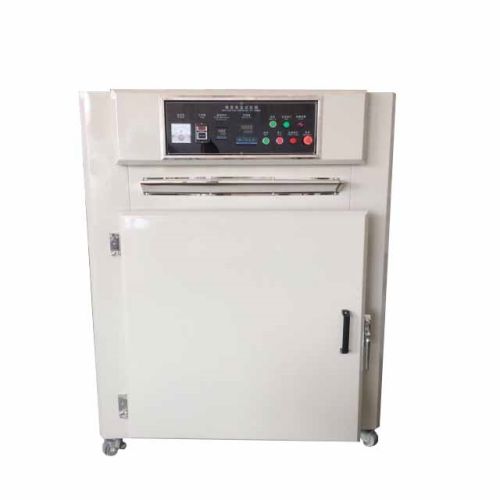

Picture for reference
