Ⅰ、Measuring principle and application characteristics of laser thickness gauge：

Measuring sensor: high-precision laser displacement sensor.

Measurement method: reflective optical geometric thickness measurement.

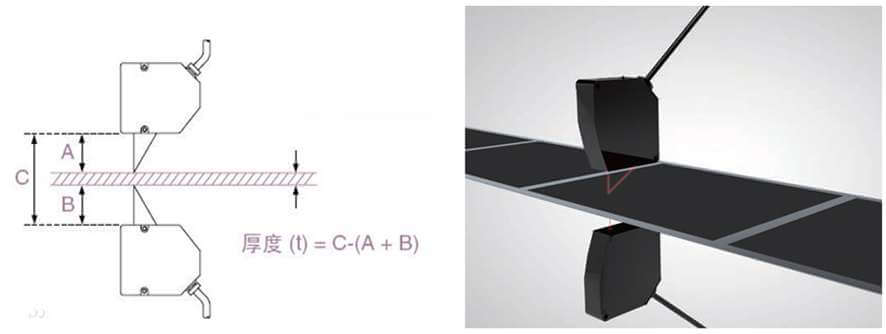

The two probes are installed on the same axis, and the triangular geometry method is used to measure the geometric thickness of the material by measuring the distance from the upper and lower surfaces of the material to the laser.

Ⅱ、Scanning frame:

Due to the high requirements for the coaxial alignment accuracy of the upper and lower probes in laser measurement, only C-type scanning frame is suitable, and generally marble with small linear expansion coefficient is used

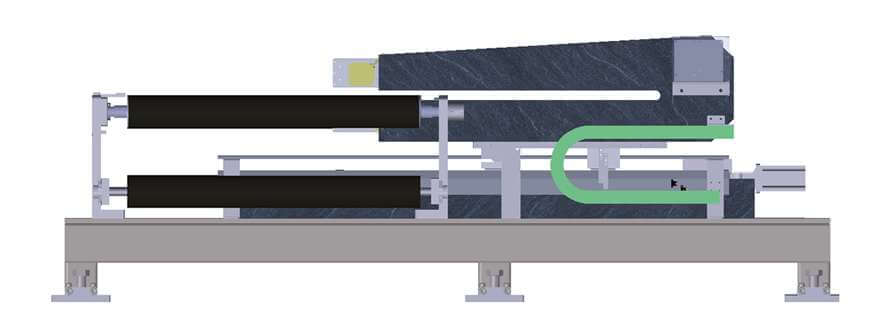

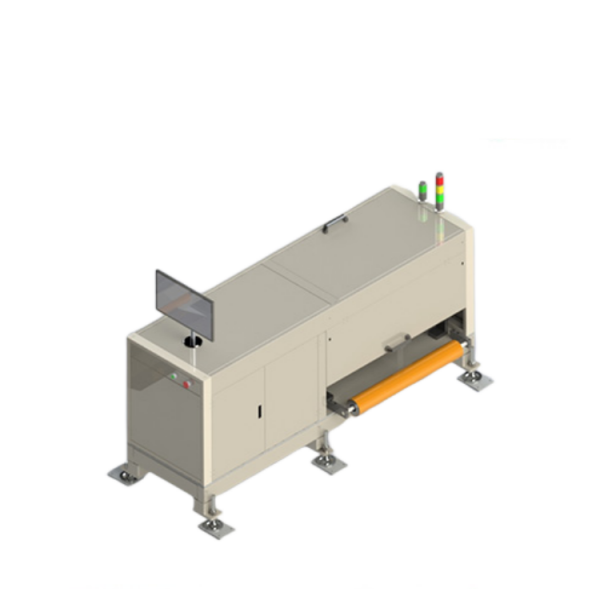

Or cast iron C-frame, as shown below:

The laser thickness gauge does not need to sample and calibrate the product, but only needs to calibrate the standard thickness sheet regularly.

Because the laser sensor has small measuring spot and high precision fine fringe resolution, it can be used to measure the size of the coating edge or the head and tail thinning of the lithium battery electrode.

Ⅲ、Application field:

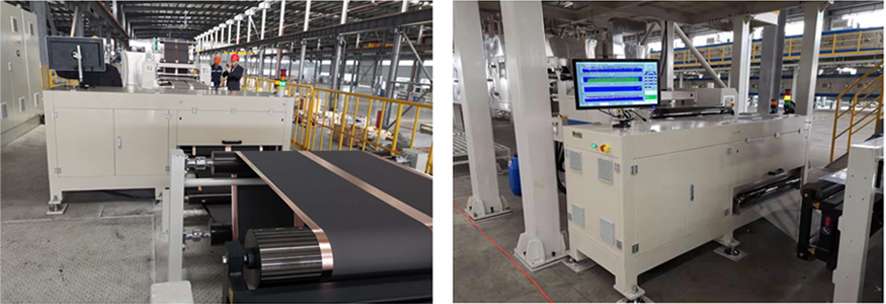

It is mainly used for the thickness measurement of lithium battery pole after rolling, the outline and size measurement of lithium battery coating edge or head and tail thinning area, and the online measurement of other sheet, plate or coil thickness such as gypsum board, copper clad plate, metal calendering, rubber, etc.

Ⅳ、Performance index:

*The above data are based on the measurement of the lithium battery electrode sheet rolling press or coating thickness.
