cassie@lionbatterymachine.comThe RYJ-600A/B series

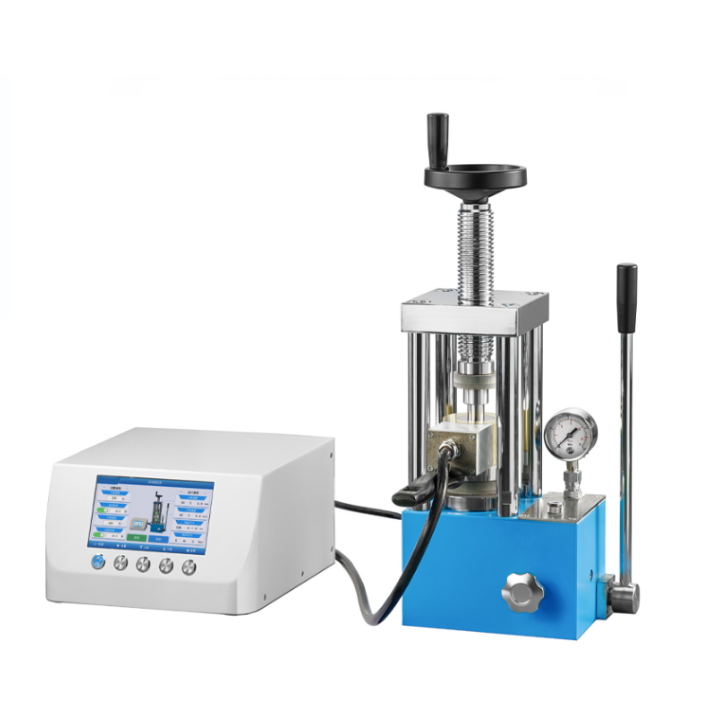

The RYJ-600A/B series manual heat press is suitable for users who need to fix the shape and size of the sample. It is more common for some powder samples, granular samples, polymer samples and other samples in a hot pressing environment ( Cylindrical, square) sample preparation for scientific analysis and research.
In a short, the machine is actually a manual powder tablet press with a set of hot pressing molds (the default configuration is cylindrical, and the specifications are optional). According to the needs of the experiment, electric or automatic tablet presses can also be purchased, and It can be used for multiple purposes in one machine, equipped with specific molds, and can also be used as an ordinary tablet press.
Main technical parameters
Product name | RYJ-600A | RYJ-600AG | RYJ-600B | RYJ-600BG |
Pressure range | 0-24T(0-34Mpa) | 0-40T(0-30Mpa) | ||
Pressure conversion | 1T=1.41Mpa | 1T=0.75Mpa | ||
Piston diameter | Dia95 Chrome plated cylinders | Dia130 Chrome plated cylinders | ||
Maximum piston stroke | 30mm | 50mm | ||
Pressure gauge type | Pointer type, pressure and pressure double scale display, measuring range 0-40mpa, accuracy 1M | |||
Pressure/supplement mode | Manual pressure/manual supplementary pressure | |||
Thermostat type | XNNETS PLC Programmed temperature controller | |||
Temperature range of thermostat | Rt-600°C, accuracy 0.1°C | |||
Heating mold type | CylindricalΦ3-Φ20mm/set | CylindricalΦ21-Φ40mm/set | ||
Temperature of heating plate | RT-300°C | RT-500°C | RT-300°C | RT-500°C |
Power | 220V/300W | 220V/500W | ||
Machine size | 245*175*415mm | 295*215*500mm | ||
Machine weight | 45kg | 80kg | ||
Equipment insulation method | Imported insulation board | |||

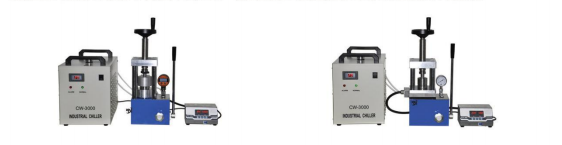

Heating plate cooling method | Stainless steel water-cooled circulating heat insulation board (optional, used with water chiller) | |||
Standard configuration | One tablet press, one hot press mold, one thermostat (water cooler optional) | |||
