Brand :
LinengItem NO :
LN-PMFCompliance :
CE CertificatePayment :
Credit Card, Paypal, T/T , Western Union, LCWarranty :
Two Years Limited Warranty With Lifetime SupportDelivery Time :
In stockWhatsapp:
+86 18659217588WeChat:
18659217588Email:
cassie@lionbatterymachine.com
Parameter
Instrument model | PMF-A |

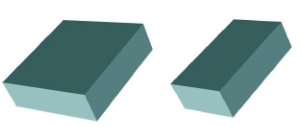

Pressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | 3x3, 4x4, 5x5, 6x6, 8x8, 10x10mm(M) |
Cavity depth | 20mm(N) |
External dimensions | Φ43x93mm(LXH) |
Mold weight | 0.65kg |
Schematic diagram of dimensions |
|

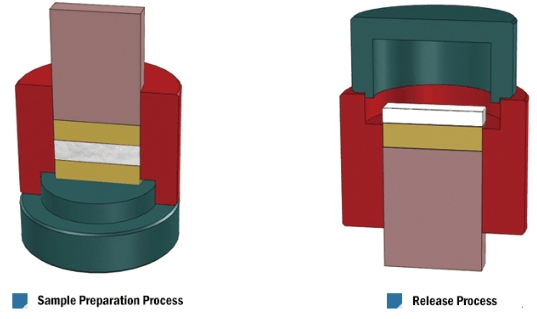

Schematic Diagram of Mold Operation
