Parameter
Model | TMAX-PMF-P |

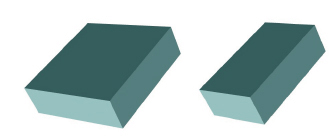

Compressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Long side 81-150mm(M) |
Cavity depth | 60mm(N) |
Dimensions | 160*160mm (L*H) |
Mold weight | 20kg |

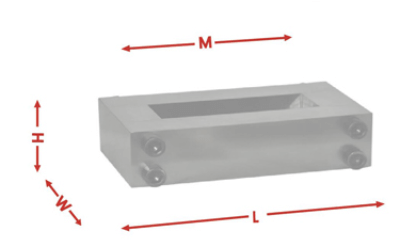

Dimension diagram |
|
Model | TMAX-PMF-P |
Compressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Long side 151-200mm(M) |
Cavity depth | 60mm(N) |
Dimensions | 220*160mm (L*H) |
Mold weight | 45kg-80kg |

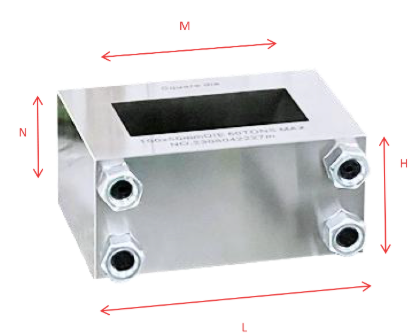

Dimension diagram |
|

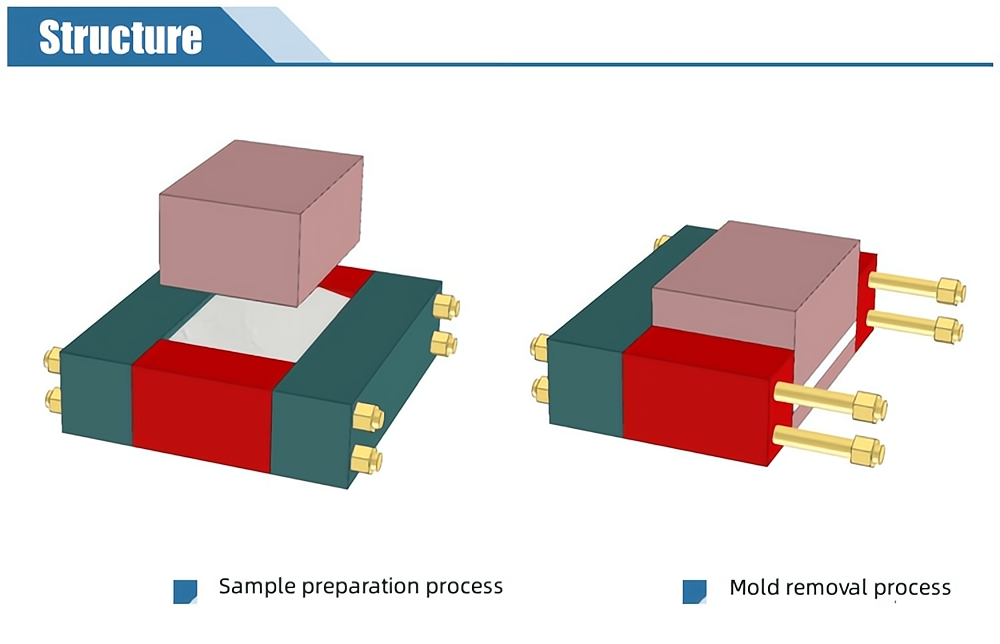

Schematic Diagram of Mold Operation
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service. Our company has strong scientific research strength, including more than 20 senior mechanical and electrical engineers, 8 external experts and professors, and more than 160 front-line technical workers.
Quanzhou Lineng Mechinery and Equipment Co., Ltd is a technology-based enterprise, integrating R&D, manufacturing, sales and service.
