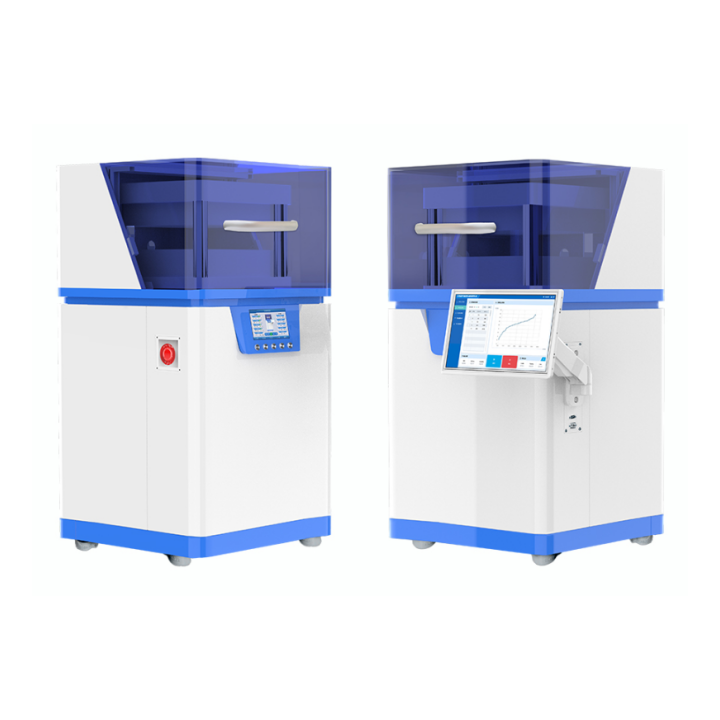

Customized Fully Automatic Hot Press Machine Suppliers, Manufacturers, Factory - Discount Price

Specification

Model	PP-600C-F	PP-600D1-F	PP-600D2-F
Mold Heating Temperature Power(Optional)	RT-300°C/1.6KW RT-500°C/2KW RT-800°C/4.5 KW	RT-300°C/2.2KW RT-500°C/3.4KW RT-800°C/6 KW
Pressure Range	0-5T	0-25T
Pressure Accuracy	0.01 ton
Display Screen	7-inches Touch Screen
Metal key/button	Silver-plated contacts, with a service life of over 100,000 cycles
Safety Protection	Acrylic protective door (automatic power-off when opened) + emergency stop switch, dual protection for safer operation.
Curved graph pattern	It can display the operation curve graph for each time and supports downloading Excel files via USB drive.
Process Control	Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.
Water cooling for cooling	Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.
Speed Regulation	The boosting speed can be adjusted,and the heating speed can also be regulated.
Remote Control	A computer needs to be selected and equipped. lt can perform functions such as data analysis,comparison,modification, and export.
Power Supply Power	220V/110V Customizable
Plate Size (M X N)	120 x 120mm	180 x 180mm	200x200mm
Working Space	130 x 55mm	210 x 65 mm
Product Dimensions/Weight	350x350x580mm /75kg	480x480x750 mm/200kg
Package Dimensions/Gross Weight	725 x620 x890 mm /84kg	725 x 620 x890 mm /236kg

Model	PP-600E-F	PP-600F-F	PP-600G-F
Mold Heating Temperature Power(Optional)	RT-300°C/3KW RT-500°C/4.5KW	RT-300°C/4KW RT-500°C/6KW	RT-300°C/10KW RT-500°C/16KW
Pressure Range	0-30T	0-50T	0-60T
Pressure Accuracy	0.01 ton
Display Screen	7-inches Touch Screen
Metal key/button	Silver-plated contacts, with a service life of over 100,000 cycles
Safety Protection	Acrylic protective door (automatic power-off when opened) + emergency stop switch, dual protection for safer operation.
Curved graph pattern	It can display the operation curve graph for each time and supports downloading Excel files via USB drive.
Process Control	Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.
Water cooling for cooling	Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.
Speed Regulation	The boosting speed can be adjusted,and the heating speed can also be regulated.
Remote Control	A computer needs to be selected and equipped. lt can perform functions such as data analysis,comparison,modification, and export.
Power Supply Power	220V/110V Customizable
Plate Size (M X N)	300 x 300mm	400 x 400mm	500x500mm
Working Space	320x 70mm	420 x90 mm	520 x100 mm
Product Dimensions/Weight	580x580x1180 mm/580kg	680 x 680 x 1280mm/ 1130kg		680 x680 x 1280 mm /1080 kg
Package Dimensions/Gross Weight	900x800x1400 mm/650kg	900x800 x 1400 mm/1200kg		900 x800 x1400 mm /1920 kg
