Parameter
Model | TMAX-PMK-FA |

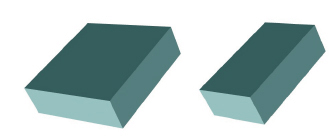

Compressed sample shape |
|
Mold material | Alloy tool steel：Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | 3*3、4*4、5*5、6*6、8*8、10*10mm(M) |
Cavity depth | 30mm(N) |
Dimensions | Φ53*120mm(L*H) |
Mold weight | 1.2kg |

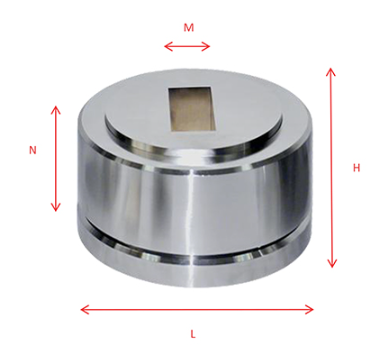

Dimension diagram |
|
Model | TMAX-PMK-FA |
Compressed sample shape |
|
Mold material | Alloy tool steel：Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Length60-80 mm (M) |
Cavity depth | 60mm(N) |
Dimensions | Φ180x180 mm, $200x180mm (LXH) |
Mold weight | 40kg/50kg |
Dimension diagram |
|

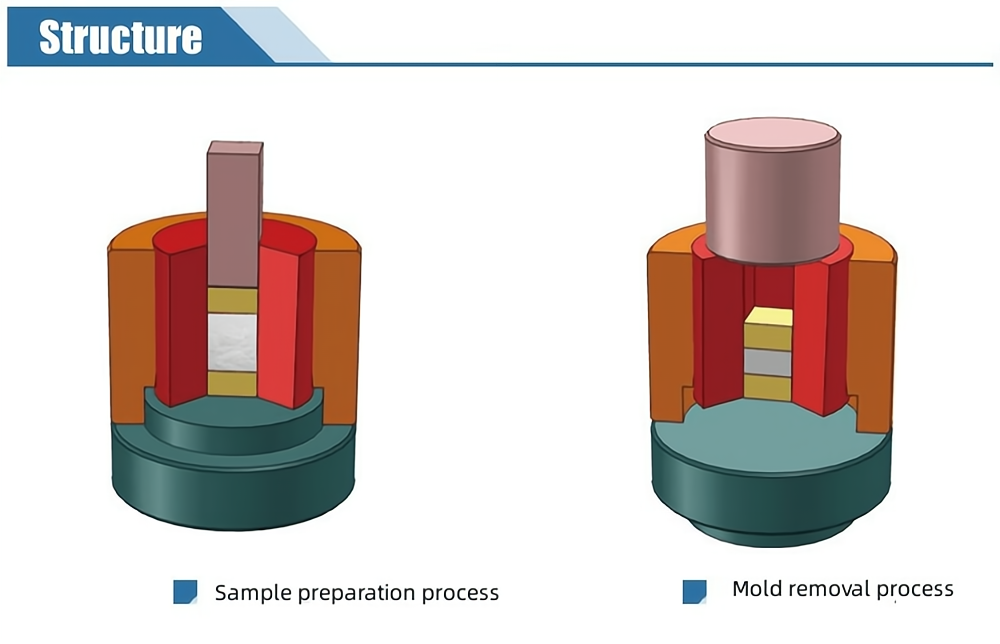

Schematic Diagram of Mold Operation

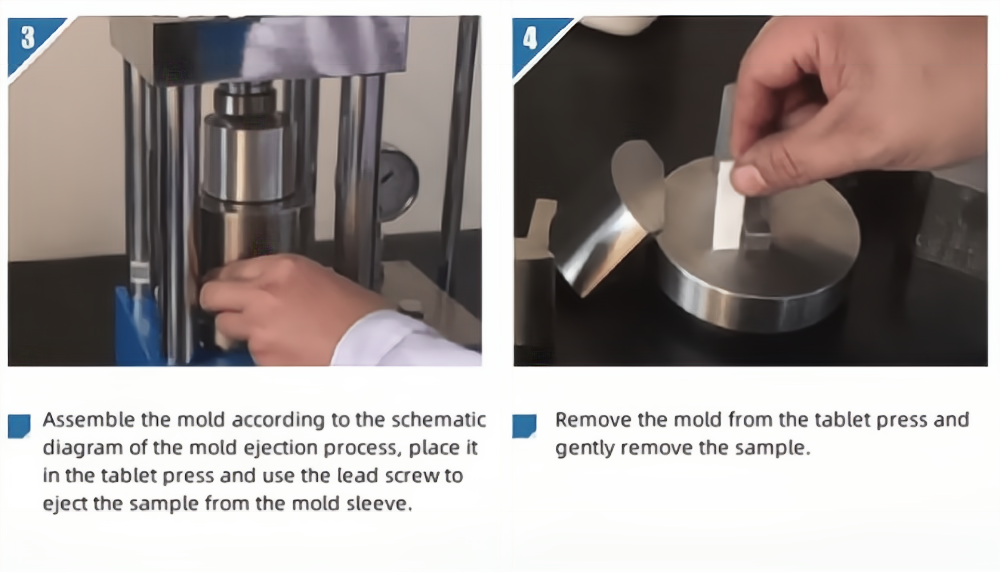

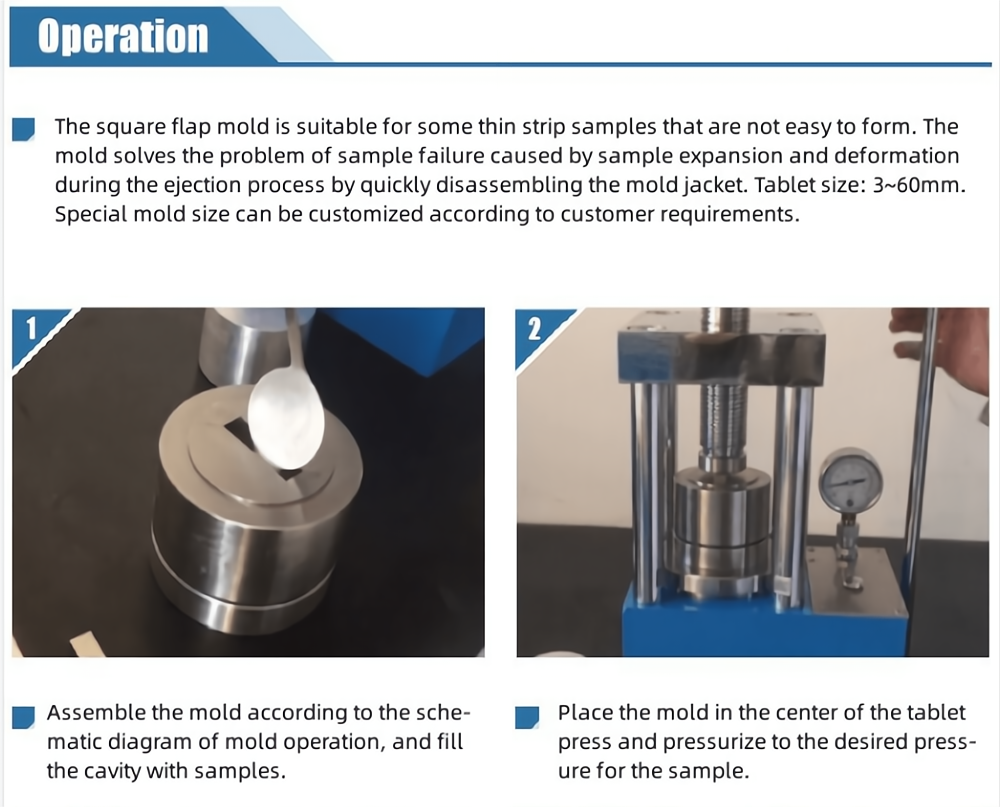

Mold sample preparation operation steps
