cassie@lionbatterymachine.comModel | TMAX-PMO-A |
Pressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ5-40mm(M) |
Cavity depth | 30-40mm(N) |
Dimensions | Φ43*73mm*120mm(L*H) |
Mold weight | 1.5kg |

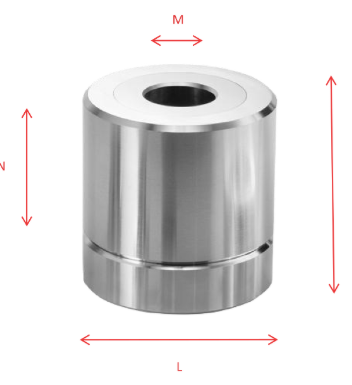

Dimension diagram |
|
Model | TMAX-PMO-A |
Pressed sample shape |
|
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ41-80mm(M) |
Cavity depth | 45mm(N) |
Dimensions | Φ88*128mm*120mm(L*H) |
Mold weight | 3.5kg、5kg |

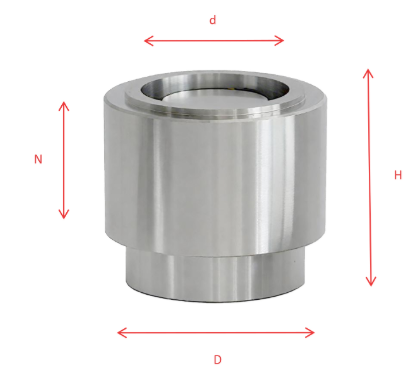

Dimension diagram |
|
